2013-07-30

CSS selector for all the textboxes

Usual way of applying styles for all the textboxes is like below

input[type="text"] {
    /*CSS here*/
}

Problem with the above is, it will not include the textboxes which get renders when you simply put a <input> tag. Note that when you do not specify the type attribute in input elements, it will render as the default input element, textbox. The above CSS selector won't work in such cases. In such cases, you can use the below

input:not([type]), input[type="text"]
{
  /*CSS here*/
}

It will select all the input control without a type attribute as well as which are marked as type=”text”

2013-07-25

Sri Lanka .NET forum monthly user group meeting – July 2013

I’ve successfully delivered a session on “Introduction to SignalR” for the Monthly .NET User Group Meeting - July 2013. Below are the details of my session

Description: Find it really difficult to develop and manage real time web applications? With SignalR, which is a new library for ASP.NET, you can add real time web functionality to your ASP.NET application within minutes!

Duration: 45 minutes

Date: 4th July 2013

Venue: Microsoft Sri Lanka

Sri lanka .NET Forum - July user group meeting

You can download the archived file which contains all the Demo applications (Moving the scooby doo – First step for creating a multiplayer web based game, Chat application and the console application) I’ve used for the session. Below is the link for the source codes

http://sdrv.ms/125WGWC

You can access to the presentation slides using below link

https://skydrive.live.com/#!/view.aspx?cid=56E5E527D356065A&resid=56E5E527D356065A%21124&app=PowerPoint

Below is the full video of the Session

http://www.youtube.com/watch?feature=player_detailpage&v=Vy4FA8lZAJI&t=2804

2013-07-24

Connecting a Windows Store app to a website with SignalR

There are different kinds of clients we can use with SignalR. Web browsers, Silverlight, WinRT, WPF are some of them.

On this post, I’ve shown you how to create a chat application with ASP.NET using SignalR library. There I’ve used the browser as the client. I extend that example to integrate a console application as the client in this post.

Now I’m going to show you how to connect a Windows 8 Store app to a website with SignalR library. If you need to know how to implement the server side, please go to the below link

http://ruchirac.blogspot.com/2013/02/creating-chat-application-in-aspnet.html

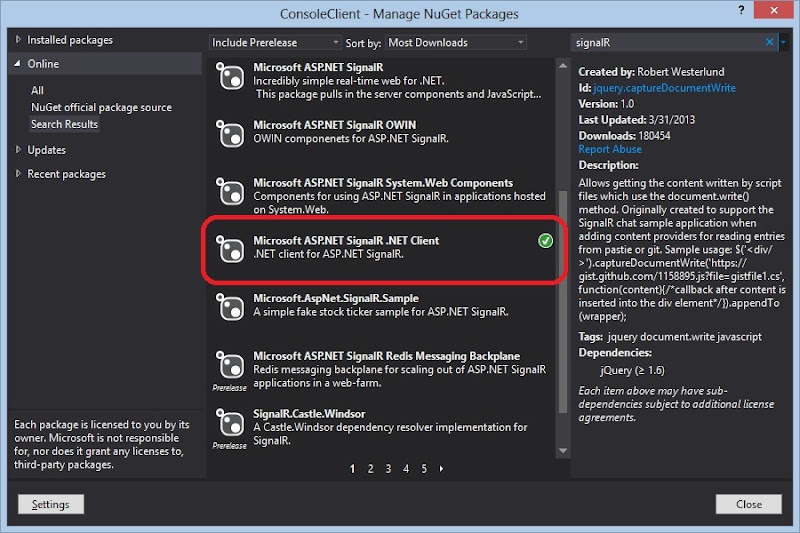

As the first step, I have to install SignalR .NET Client library to my Windows Store App project. I can easily do this using NuGet Package Manager (PROJECT –> Manage NuGet Package Manager…). Type SignalR on the Manage NuGet Packages dialog box so it will list down all the SignalR libraries. Select Microsoft ASP.NET SignalR .NET Client and click install. It will take care of adding all the relevant DLLs to my project.

Now we are ready to develop the Windows Store App.

I’m going to use the default MainPage.xaml. Below is the markup of that page.

<Page
    x:Class="SignalRWindows8App.MainPage"
    xmlns="
http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:local="using:SignalRWindows8App"
    xmlns:d="
http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d" Loaded="Page_Loaded">

    <Grid Background="{StaticResource ApplicationPageBackgroundThemeBrush}">
        <Popup x:Name="enterName">
            <Popup.ChildTransitions>
                <TransitionCollection>
                    <PaneThemeTransition />
                </TransitionCollection>
            </Popup.ChildTransitions>
            <Border BorderBrush="{StaticResource ApplicationForegroundThemeBrush}"
                Background="{StaticResource ApplicationPageBackgroundThemeBrush}"
                BorderThickness="2" x:Name="border">
                <StackPanel HorizontalAlignment="Center" VerticalAlignment="Center">
                    <TextBlock Text="Enter your name:" FontSize="26.667" Margin="0,50,0,0"/>
                    <TextBox x:Name="chatName" HorizontalAlignment="Center" FontSize="26.667" Height="50" Width="300" Margin="0,50,0,0" />
                    <Button Content="OK" HorizontalAlignment="Center" Click="Button_Click_1" Height="50" Width="100" Margin="0,50" />
                </StackPanel>
            </Border>
        </Popup>
        <TextBlock x:Name="chatShow" Margin="0,0,0,243" FontSize="14.667" ScrollViewer.HorizontalScrollMode="Auto" ScrollViewer.VerticalScrollMode="Auto"/>
        <TextBox x:Name="txtMessage" Height="100" Margin="31,573,778,95" />
        <Button Click="Button_Click" Content="Send" HorizontalAlignment="Center" VerticalAlignment="Bottom" Margin="609,0,655,95" Height="50" Width="100" />
    </Grid>
</Page>

I’m using a popup to enter the name for the user.

Then I have a TextBlock called ‘chatShow’ to display the chat and a TextBox called ‘txtMessage’ for user to enter the chat message. Finally I’m using a button to send the message.

Let’s look at the code behind implementation.

using Microsoft.AspNet.SignalR.Client;
using Microsoft.AspNet.SignalR.Client.Hubs;
using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using System.Threading;
using Windows.Foundation;
using Windows.Foundation.Collections;
using Windows.UI.Xaml;
using Windows.UI.Xaml.Controls;
using Windows.UI.Xaml.Controls.Primitives;
using Windows.UI.Xaml.Data;
using Windows.UI.Xaml.Input;
using Windows.UI.Xaml.Media;
using Windows.UI.Xaml.Navigation;

namespace SignalRWindows8App
{
    /// <summary>
    /// An empty page that can be used on its own or navigated to within a Frame.
    /// </summary>
    public sealed partial class MainPage : Page
    {
        IHubProxy chat;
        public SynchronizationContext Context { get; set; }

        public MainPage()
        {
            this.InitializeComponent();
        }

        protected override void OnNavigatedTo(NavigationEventArgs e)
        {
        }

        private void Page_Loaded(object sender, RoutedEventArgs e)
        {
            if (!enterName.IsOpen)
            {
                border.Width = Window.Current.Bounds.Width;
                border.Height = Window.Current.Bounds.Height;
                enterName.IsOpen = true;
                chatName.Focus(FocusState.Pointer);
            }
        }

        async private void makeConnection()
        {
            try
            {
                var hubConnection = new HubConnection("
http://localhost:53748");
                chat = hubConnection.CreateHubProxy("ChatHub");
                chatShow.Text = "";
                Context = SynchronizationContext.Current;
                chat.On<string, string>("broadcastMessage",
                    (name, message) =>
                        Context.Post(delegate
                    {
                        this.chatShow.Text += name + ": "; this.chatShow.Text += message + "\n";
                    }, null)
                        );
                await hubConnection.Start();
                await chat.Invoke("Notify", chatName.Text, hubConnection.ConnectionId);
            }
            catch (Exception ex)
            {

            }
        }

        private void Button_Click(object sender, RoutedEventArgs e)
        {
            sendMessage();
        }

        async private void sendMessage()
        {
            try
            {
                await chat.Invoke("Send", chatName.Text, txtMessage.Text);
            }
            catch (Exception ex)
            {
            }
        }

        private void Button_Click_1(object sender, RoutedEventArgs e)
        {
            if (enterName.IsOpen)
            {
                enterName.IsOpen = false;
            }
            makeConnection();
        }
    }
}

Let’s analyze the code behind.

Since I’m going to use my Hub Proxy in more than one places (Page_Loaded method and Button_Click method), I declare it as a Global variable.

IHubProxy chat;

Also, here I’m using a SynchronizationContext to separately handle the updates from UI thread.

I’m going to show a popup as soon as application launches. My popup control’s name is ‘enterName’.

private void Page_Loaded(object sender, RoutedEventArgs e)
{
    if (!enterName.IsOpen)
    {
        border.Width = Window.Current.Bounds.Width;
        border.Height = Window.Current.Bounds.Height;
        enterName.IsOpen = true;
        chatName.Focus(FocusState.Pointer);
    }
}

So on the Page_Loaded method, I’m checking whether it’s already opened by calling enterName.IsOpen. If it returns false, I set the width and height of the popup to window width and height because I like my popup to take the entire screen when it displayed. Then I set the cursor to textbox ‘chatName’ so user can enter the name.

When the user press OK button, I hide the popup and make the connection between the server and Windows Store App. To make the connection, I’m calling the makeConnection() method as shown below.

private void Button_Click_1(object sender, RoutedEventArgs e)
{
    if (enterName.IsOpen)
    {
        enterName.IsOpen = false;
    }
    makeConnection();
}

Following is the implementation of makeConnection() method.

async private void makeConnection()
{
    try
    {
        var hubConnection = new HubConnection("
http://localhost:53748");
        chat = hubConnection.CreateHubProxy("ChatHub");
        chatShow.Text = "";
        Context = SynchronizationContext.Current;
        chat.On<string, string>("broadcastMessage",
            (name, message) =>
                Context.Post(delegate
            {
                this.chatShow.Text += name + ": "; this.chatShow.Text += message + "\n";
            }, null)
                );
        await hubConnection.Start();
        await chat.Invoke("Notify", chatName.Text, hubConnection.ConnectionId);
    }
    catch (Exception ex)
    {

    }
}

Note that I’ve made the method as async. I’m wishing to call some long running processes inside that method. So I need to use the await keyword in front of that method.

I’m creating the hub connection by passing the URL I need my app to connect to. Since I run my web application from Visual Studio, I use the localhost address.

var hubConnection = new HubConnection("http://localhost:53748");

Next I’m using that connection to create a hub proxy. The class name of my server side hub is ‘ChatHub’. So I’m passing that name to create a hub proxy.

chat = hubConnection.CreateHubProxy("ChatHub");

Then I register the ‘broadcastMessage’ method on my app to display the messages I get from the server (The server will actually broadcast the messages get from clients). I’m getting two values, name and message from the server and I display them on my app.

chat.On<string, string>("broadcastMessage",
           (name, message) =>
               Context.Post(delegate
           {
               this.chatShow.Text += name + ": "; this.chatShow.Text += message + "\n";
           }, null)
               );

Then I start the connection between server and my app. I will call a server method at next line. When I go to next line, I need to be sure that connection has been made to the server in order to run the server method. Since I’m using await keyword, the method will return but will not execute the rest of the lines in async method until the the connection has been made.

await hubConnection.Start();

Then I’m calling a server method called ‘Notify’, which will be responsible for notifying other clients that my app is connected to the chat system. For that I’m using the below code

await chat.Invoke("Notify", chatName.Text, hubConnection.ConnectionId);

I’m passing the name I got from the popup and the connection ID which get assigned to my app. There also I’m using await because I need it to be finished first before I start sending the messages from my app.

Now we have successfully made the connection between my app and the server. Now let’s look how we can send messages through my app.

On the Send button click event, I’m calling a method called ‘sendMessage’

private void Button_Click(object sender, RoutedEventArgs e)
{
    sendMessage();
}

The sendMessage method implementation is like below

async private void sendMessage()
{
    try
    {
        await chat.Invoke("Send", chatName.Text, txtMessage.Text);
    }
    catch (Exception ex)
    {
    }
}

This method is also marked as async. I invoke the server side method called “Send” to send the messages. I pass the name and message to that method so the server method can broadcast my message to other connected clients.

That’s all it takes to create a windows store app which connects, display and send messages in real time with a browser client, using SignalR library.

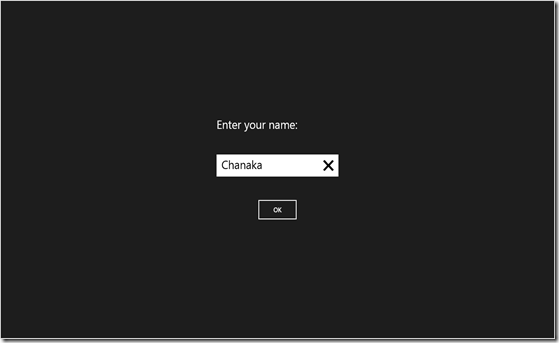

Following is a screenshot of the first screen of my app (Popup)

1

Below is how it interacts with the browser

2

As you can see, it updates the messages in real time both in windows store app and browser!

2013-07-08

A quick guide to choosing the right ASP.NET programming modal for your project

First of all, I must say that choosing the right programming modal for your ASP.NET project really depends on lot of factors like project requirements, the knowledge of the team, the time duration set for the project etc. What I’m trying to discuss in this article is providing a brief overview of how to decide what programming modal should be use for your project.
If you choose the right programming modal according to the project, every programming modal can be used very powerfully and effectively. Basically there are 3 programming modals in ASP.NET
  1. WebForms
  2. MVC
  3. WebPages
I would not discuss about pros and cons in each modal or compare/contrast those. I will take some situations and point out what modal would be the ideal choice.
  • You need friendly URLs for SEO – Since the MVC have a default URL routing logic, MVC will make it easier. If you use WebForms, you would have to write the routing logic.
  • Performance – Performance wise, MVC is better than WebForms. That’s mainly because MVC does not make use of ViewState which carry a lot of information to the server.
  • Experience of the developers – If the developers are much more familiar with WinForms development, they will find it easier to develop with WebForms. WebForms is an event driven development modal. And also, we can drag and drop controls to our page just like we did in WinForm applications. So developers will find a lot of similarities between developing WinForms and WebForms. MVC, on the other hand, requires a good basic understanding of how the web applications work. If the developers are really novice and newbies to web developments, WebPages would be a better choice. It’s light weighted and easier to understand compared to other two.
  • You need a good control of the UI – There is a much more control over the UI if you use MVC over WebForms. MVC will allow developers to create the UI independently from the server code.
  • You need a good separation of the UI and server side code – Since MVC works as Modal-View-Controller, it allows developers to work independently of the server side code and UI. This comes very useful if the UI is going to be designed by a web designer and server side code is going to develop by a web developer. If you use WebForms, it’s not possible (Or at least, really hard) to work on a one page by many people because it tightly couples with the code behind file.
  • Rapid Application Development – If the project is about developing it as soon as you can and if you don’t have to care much about performance, then WebForms would be a better approach. This is true mostly for the intranet web applications. In an intranet application, you don’t have to worry about Search Engine Optimization too. So WebForms will be an ideal choice to develop intranet web applications because you don’t have to worry much about the performance and SEO aspects.
  • You need a test driven environment – Unit testing is much more easier in MVC framework than in WebForms.
MVC seems to over complicate simple things. But once you have a good grasp of it, things will turn out really easy for you. Above are few of the factors which affect for deciding the program modal. There are many more.
